ZEB/D/CU100K

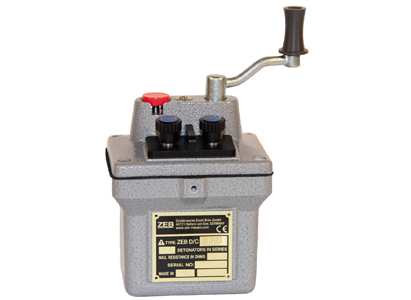

Our blasting machine ZEB/D/CU100K is the most powerful D-Series blasting machine that ZEB offers. The machine is equipped with a special circuit that allows it to be used in gassy mines and firedamp situations. The heavy-duty design with aluminum alloy housing is developed for long and reliable service. The housing is painted in a gray hammer effect finish with all stainless steel parts for a long lasting professional appearance. The charging crank is removable to protect the machine against unauthorized usage. If the capacitor is charged to the fire ready state the indicator bulb on top lights. Simply push the red fire push button to initiate. The discharge energy immediately reaches its maximum value that ensures a fast and reliable ignition of all applicable detonator types (shown on next page). The maximum number of detonators of each type is defined by the maximum electrical resistance of the ignition circuit.

Highlights

Our capacitor blasting machines are portable units suitable to ignite electric detonators.
D-Series blasting machines of ZEB are mainly consisting of an electro-mechanical generator, a capacitor, a crank and a releasing device.
By turning the crank handle the generator produces a high voltage. The generated energy is stored in a capacitor.
When the capacitor has accumulated the necessary energy an indicator bulb will light to show the fire ready state.
The initiation can be done by pushing the fire push button.
This equipment is a high quality machine developed and manufactured in Germany.
ZEB recommends sending blasting machines to ZEB in a periodic cycle for a check.

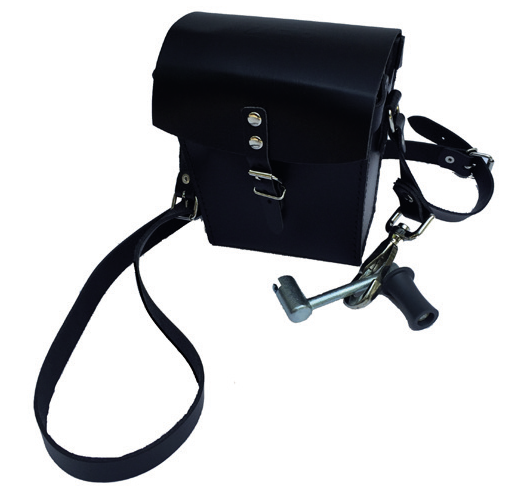

Leather Case ZEB/D/CU100K

We recommend to store and operate the blasting machine is in its protective leather case.

It is important that the ignition circuit resistance does not exceed the allowed maximum resistance of the blasting machine.

This equipment can be used in dangerous areas like gassy mines (flammable environments: methane or coal dust) because it is equipped with a special circuit that reduces the ignition impulse to t <4ms. This machine can be identified by an additional “S” mark on the rating plate.

Read the User Manual delivered with the blasting machine carefully before using the product. Only blasting machines with the product extension “K” are allowed to be used in flammable environments such as methane or coal dust. Never touch the terminal clamps -the generated high voltage can cause an electric shock.

The information contained herein can vary according to the different conditions of storage and use of the products as well as external factors like temperature, humidity and pressure, among others. This product is potentially dangerous; and, therefore, its use and handling must be restricted to the personnel duly qualified and be submitted to applicable laws.

The documentation described herein shall not be considered as contractual commitment and its disclosing shall not be able to be treated as a contractual offer. By virtue of this document the Company does not assume any liability nor warranty before third parties.
